LM2574 Datasheet - Micrel Semiconductor

LM2574 52kHz Simple 0.5A Buck Regulator

The LM2574 family is a series of easy to use fixed and adjustable switching voltage regulators. The LM2574 contains all of the active circuitry necessary to construct a stepdown (buck) switching regulator and requires a minimum of external components. The LM2574 is available in 3.3V and 5V fixed outpu.

LM2574 Features

* 3.3V, 5V, 12V, and adjustable output versions

* Adjustable version output 1.23V to 37V ±4% max. over line and load conditions.

* Guaranteed 0.5A output current

* Wide input voltage, up to 40V

* Thermal shutdown and current limit protection

* Requires

LM2574_MicrelSemiconductor.pdf

Preview of LM2574 PDF

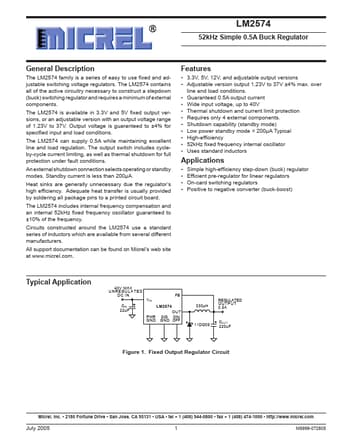

LM2574 Datasheet Preview Page 2 LM2574 Datasheet Preview Page 3

Datasheet Details

Part number:

LM2574

Manufacturer:

Micrel Semiconductor

File Size:

185.12 KB

Description:

52khz simple 0.5a buck regulator.
