LM2575 Datasheet - Micrel Semiconductor

LM2575 52kHz Simple 1A Buck Regulator

The LM2575 series of monolithic integrated circuits provide all the active functions for a step-down (buck) switching regulator. Fixed versions are available with a 3.3V, 5V, 12V, fixed output. Adjustable versions have an output voltage range from 1.23V to 37V. Both versions are capable of driving a.

LM2575 Features

* 3.3V, 5V, 12V, and adjustable output versions

* Voltage over specified line and load conditions: Fixed version: ±3% max. output voltage Adjustable version: ± 2% max. feedback voltage

* Guaranteed 1A output current

* Wide input voltage range: 4V to 40V

* Wide

LM2575 Datasheet (148.36 KB)

Preview of LM2575 PDF

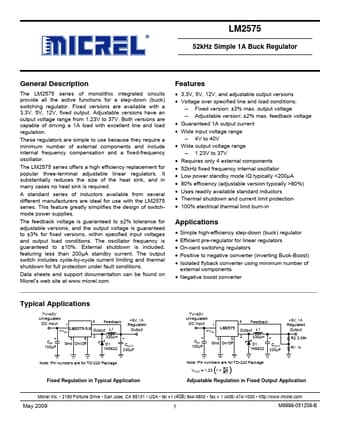

LM2575 Datasheet Preview Page 2 LM2575 Datasheet Preview Page 3

Datasheet Details

Part number:

LM2575

Manufacturer:

Micrel Semiconductor

File Size:

148.36 KB

Description:

52khz simple 1a buck regulator.
