MIC10938 - (MIC10938 / MIC10939) V. F. Dot Matrix Display Controller

Description

The MIC10938 and MIC10939 Dot Matrix Display Controller is a two-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum fluorescent or LED).

Features

  • 20-character display driver cascadable to 80 characters Standard 5 × 7 character font Separate cursor driver output Direct drive capability for vacuum-fluorescent displays 128 × 35 PLA provides segment decoding for full 96character ASCII set, plus 32 special characters.
  • Serial or parallel data input for 8-bit display and control characters.
  • 40-pin DIP or 44-pin PLCC Ordering Information Part Number Temperature Range 0°C to +70°.

📥 Download Datasheet

Datasheet Details

Part number MIC10938
Manufacturer Micrel Semiconductor
File Size 44.02 KB
Description (MIC10938 / MIC10939) V. F. Dot Matrix Display Controller
Datasheet download datasheet MIC10938 Datasheet

📁 Similar Datasheet

  • MIC1555 - IttyBitty RC Timer/Oscillator (Microchip)
  • MIC1557 - IttyBitty RC Timer/Oscillator (Microchip)
  • MIC184 - Local/Remote Thermal Supervisor (Microchip)
  • MIC2003 - Fixed and Adjustable Current Limiting Power Distribution Switches (Microchip)
  • MIC2004 - Fixed Current Limit Power Distribution Switch (Micrel)
  • MIC2004 - Fixed Current Limit Power Distribution Switch (Micrel)
  • MIC2004 - Fixed and Adjustable Current Limiting Power Distribution Switches (Microchip)
  • MIC2005 - Fixed and Adjustable Current Limiting Power Distribution Switches (Microchip)
  • MIC2005A - Fixed and Adjustable Current Limiting Power Distribution Switches (Microchip)
  • MIC2005L - Fixed and Adjustable Current Limiting Power Distribution Switches (Microchip)
Other Datasheets by Micrel Semiconductor
  • MIC10937 - V. F. Alphanumeric Display Controller
  • MIC10939 - V. F. Dot Matrix Display Controller
  • MIC10942 - V. F. Dot Matrix Display Controller
  • MIC10943 - V. F. Dot Matrix Display Controller
  • MIC1232 - 5V Voltage Supervisor
  • MIC1344 - Power ORing Switch
  • MIC1426 - (MIC1426 - MIC1428) Dual 1.2A Peak Low Side MOSFET Driver
  • MIC1427 - (MIC1426 / MIC1428) Dual 1.2A Peak Low Side MOSFET Driver

Full PDF Text Transcription

Click to expand full text

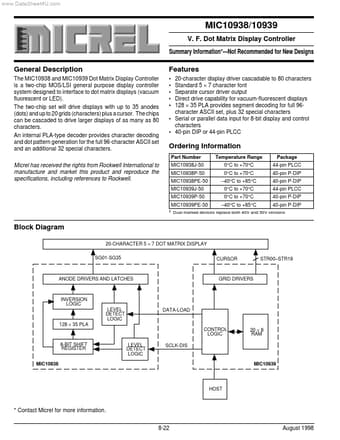

www.DataSheet4U.com MIC10938/10939 Micrel MIC10938/10939 V. F. Dot Matrix Display Controller Summary Information*—Not Recommended for New Designs General Description The MIC10938 and MIC10939 Dot Matrix Display Controller is a two-chip MOS/LSI general purpose display controller system designed to interface to dot matrix displays (vacuum fluorescent or LED). The two-chip set will drive displays with up to 35 anodes (dots) and up to 20 grids (characters) plus a cursor. The chips can be cascaded to drive larger displays of as many as 80 characters. An internal PLA-type decoder provides character decoding and dot pattern generation for the full 96-character ASCII set and an additional 32 special characters.
