MIC29201 (MIC2920A - MIC29204) Low-Dropout Voltage Regulator

Micrel Semiconductor

Description

MIC2920A/29201/29202/29204 www.DataSheet4U.com Micrel, Inc.MIC2920A/29201/29202/29204 400mA Low-Dropout Voltage Regulator General .
The MIC2920A family are “bulletproof,” efﬁcient voltage regulators with very low dropout voltage (typically 40mV at light loads and 370mV at 250mA), a.

📥 Download Datasheet

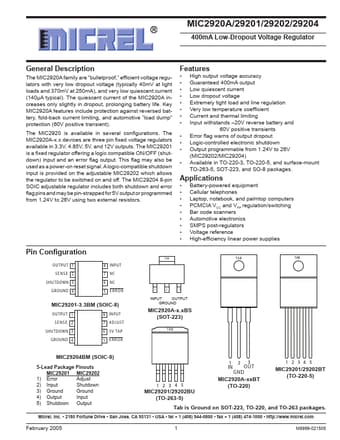

MIC29201 Datasheet Preview — Preview of MIC29201 PDF

Datasheet Specifications

Part number: MIC29201
Manufacturer: Micrel Semiconductor
File Size: 431.74 KB
Datasheet: MIC29201_MicrelSemiconductor.pdf
Description: (MIC2920A - MIC29204) Low-Dropout Voltage Regulator

Features

* include protection against reversed battery, fold-back current limiting, and automotive “load dump” protection (60V positive transient). The MIC2920 is available in several conﬁgurations. The MIC2920A-x. x devices are three pin ﬁxed voltage regulators available in 3.3V, 4.85V, 5V, and 12V outputs. Th

Applications

* Pin Conﬁguration TAB TAB TAB OUTPUT 1 SENSE 2 SHUTDOWN 3 GROUND 4 8 INPUT 7 NC 6 NC 5 ERROR 1 2 3 MIC29201-3.3BM (SOIC-8) OUTPUT 1 SENSE 2 SHUTDOWN 3 GROUND 4 INPUT OUTPUT GROUND 8 INPUT 7 A D JUST 6 5V
