MIC3203 - High-Brightness LED Driver Controller

MIC3203 Description

MIC3203/MIC3203-1 www.DataSheet4U.com High-Brightness LED Driver Controller with High-Side Current Sense General .
The MIC3203 is a hysteretic, step-down, constant-current, High-Brightness LED (HB LED) driver.

MIC3203 Features

* 4.5V to 42V input voltage range High efficiency (>90%) ±5% LED current accuracy MIC3203: Dither enabled for low EMI MIC3203-1: Dither disabled High-side current sense Dedicated dim

MIC3203 Applications

* The MIC3203 is well suited for lighting applications requiring a wide-input voltage range. The hysteretic control gives good supply rejection and fast response during load transients and PWM dimming. The high-side current sensing and on-chip current-sense amplifier delivers LED current with ±5% acc

📥 Download Datasheet

Preview of MIC3203 PDF

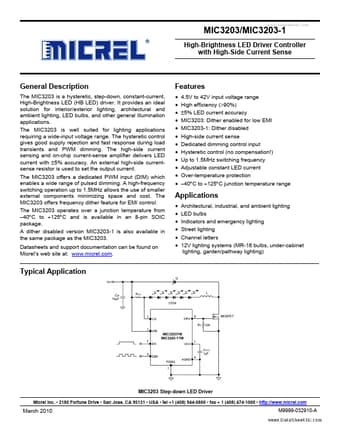

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MIC3203
Manufacturer
Micrel Semiconductor
File Size
934.94 KB
Datasheet
MIC3203_MicrelSemiconductor.pdf
Description
High-Brightness LED Driver Controller
