MIC39100 - 1A Low-Voltage Low-Dropout Regulator

Name: MIC39100
SKU: MIC39100-187072

Micrel Semiconductor

📥 Download Datasheet

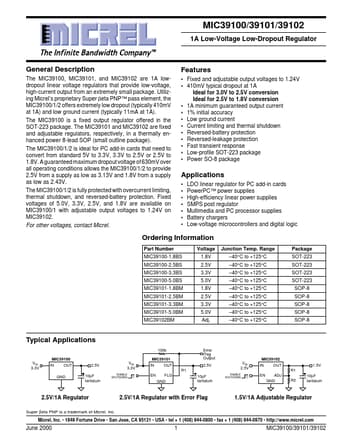

MIC39100 Datasheet Preview — Preview of MIC39100 PDF

Datasheet Details

Part number	MIC39100
Manufacturer	Micrel Semiconductor
File Size	102.47 KB
Description	1A Low-Voltage Low-Dropout Regulator
Datasheet	MIC39100-MicrelSemiconductor.pdf

MIC39100 Product details

Description

The MIC39100, MIC39101, and MIC39102 are 1A lowdropout linear voltage regulators that provide low-voltage, high-current output from an extremely small package.

Features

Fixed and adjustable output voltages to 1.24V.
410mV typical dropout at 1A Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V conversion.
1A minimum guaranteed output current.
1% initial accuracy.
Low ground current.
Current limiting and thermal shutdown.
Reversed-battery protection.
Reversed-leakage protection.
Fast transient response.
Low-profile SOT-223 package.
Power SO-8 package Applic.
