MIC5202 - Dual 100mA Low-Dropout Voltage Regulator Preliminary Information

Micrel Semiconductor

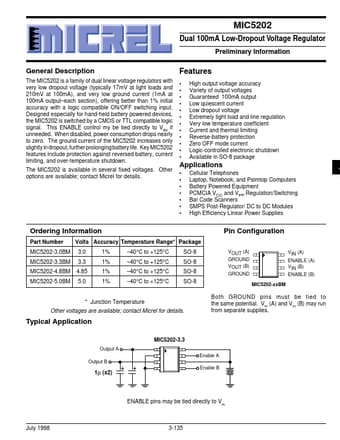

MIC5202 Datasheet Preview — Preview of MIC5202 PDF

Datasheet Details

Part number	MIC5202
Manufacturer	Micrel Semiconductor
File Size	85.55 KB
Description	Dual 100mA Low-Dropout Voltage Regulator Preliminary Information
Datasheet	MIC5202-MicrelSemiconductor.pdf

MIC5202 Product details

Description

The MIC5202 is a family of dual linear voltage regulators with very low dropout voltage (typically 17mV at light loads and 210mV at 100mA), and very low ground current (1mA at 100mA output each section), offering better than 1% initial accuracy with a logic compatible ON/OFF switching input.

Features

include protection against reversed battery, current limiting, and over-temperature shutdown. The MIC5202 is available in several fixed voltages. Other options are available; contact Micrel for details. Features.
High output voltage accuracy Variety of output voltages Guaranteed 100mA output Low quiescent cur.
