MIC5303

Single 300mA CMOS Ultra Small ULDO

MIC5303 Features

* Ultra Small 1.2mm x 1.6mm Thin MLF® package Low Dropout Voltage: 100mV at 300mA Output noise 120µVrms Input voltage range: 2.3V to 5.5V 300mA guaranteed output current Stable with ceramic output capacitors Low

MIC5303 General Description

The MIC5303 is an ultra small, Ultra Low Dropout CMOS regulator, ULDO™ that is ideal for today’s most demanding portable applications including cellular phone RF power, camera modules, imaging sensors for digital still and video cameras, PDAs, portable media players (PMP) and PC cameras where board .

MIC5303 Datasheet (378.41 KB)

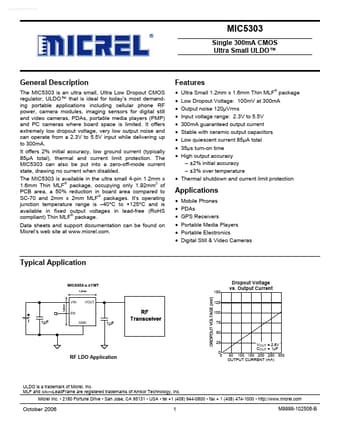

Preview of MIC5303 PDF

Datasheet Details

Part number:

MIC5303

Manufacturer:

Micrel Semiconductor

File Size:

378.41 KB

Description:

Single 300ma cmos ultra small uldo.
