MIC6270

IttyBitty Comparator Advance Information

MIC6270 Features

* an input common-mode voltage range that includes ground. Inputs are protected against reverse polarity (input voltage less than V

* ) and ESD. The MIC6270 has an open-collector output that directly interfaces with TTL, CMOS, and other types of logic. Several MIC6270 outputs can be connected to

MIC6270 General Description

The MIC6270 is a precision voltage comparator with an offset voltage specification of 5mV maximum. The MIC6270 is designed to operate from a single 2V to 36V power supply. Operation from split power supplies is also possible. Its low supply current drain is independent of the magnitude of the supply.

MIC6270 Datasheet (40.59 KB)

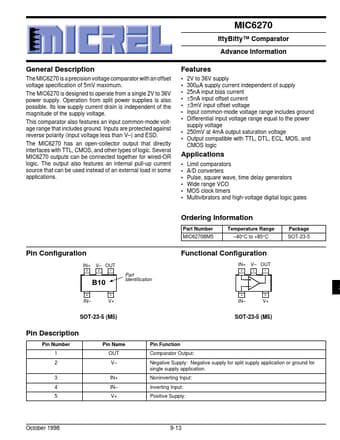

Preview of MIC6270 PDF

Datasheet Details

Part number:

MIC6270

Manufacturer:

Micrel Semiconductor

File Size:

40.59 KB

Description:

Ittybitty comparator advance information.
