PL500-16

Low Phase Noise VCXO

PL500-16 General Description

The PL500-15/16 is a low cost, high performance and low phase noise VCXO for the 1MHz to 18MHz range, providing less than -130dBc at 10kHz offset when using a 35.328MHz crystal. The very low jitter (2.5 ps RMS period jitter) makes this chip ideal for applications requiring voltage controlled frequen.

PL500-16 Datasheet (262.73 KB)

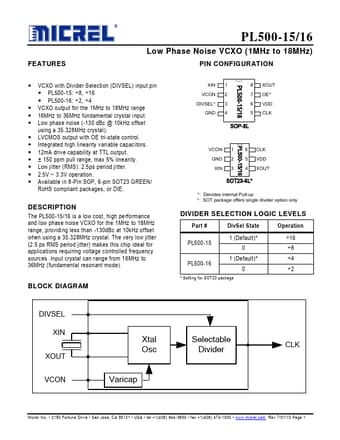

Preview of PL500-16 PDF

Datasheet Details

Part number:

PL500-16

Manufacturer:

Micrel Semiconductor

File Size:

262.73 KB

Description:

Low phase noise vcxo.
FE AT UR E S PL500-15/16 Low Phase Noise VCXO (1MHz to 18MHz) PIN CONFIGURATION
* VCXO with Divider Selection (DIVSEL) input pin
* PL500-15:.
