PL500-37 Datasheet - Micrel Semiconductor

PL500-37 - Low Phase Noise VCXO

The PL500-37 is a low cost, high performance and low phase noise VCXO for the 36 to 130MHz range, providing less than -148dBc at 10kHz offset at 77.76MHz.

The very low jitter (2.5 ps RMS period jitter) makes this chi

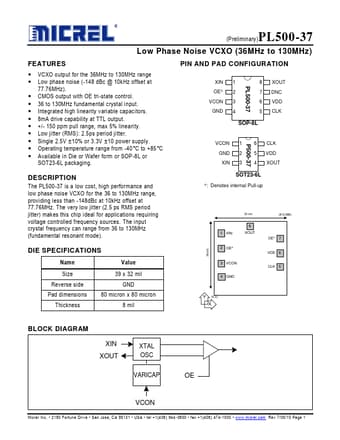

(Preliminary )P L 5 0 0 -3 7 Low Phase Noise VCXO (36MHz to 130MHz) FE AT UR E S VCXO output for the 36MHz to 130MHz range Low phase noise (-148 dBc @ 10kHz offset at 77.76MHz).

CMOS output with OE tri-state control.

36 to 130MHz fundamental crystal input.

Integrated high linearity variable capacitors.

8mA drive capability at TTL output.

+/- 150 ppm pull range, max 5% linearity.

Low jitter (RMS): 2.5ps period jitter.

Single 2.5V ±10% or 3.3
