SY100E016

8-BIT SYNCHRONOUS BINARY UP COUNTER

SY100E016 Features

* s 700MHz min. count frequency s Extended 100E VEE range of

* 4.2V to

* 5.5V s 1000ps CLK to Q, TC s Internal, gated TC feedback s 8 bits wide s Fully synchronous counting and TC generation s Asynchronous Master Reset s Fully compatible with industry standard 10KH, 100K I/O levels s Int

SY100E016 General Description

The SY10/100E016 are high-speed synchronous, presettable and cascadable 8-bit binary counters designed for use in new, high-performance ECL systems. Architecture and operation are the same as the Motorola MC10H016 in the MECL 10KH family, extended to 8 bits, as shown in the logic diagram. The counte.

SY100E016 Datasheet (89.36 KB)

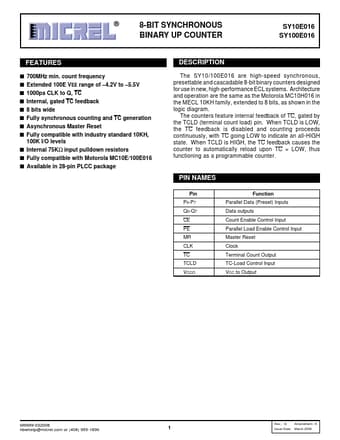

Preview of SY100E016 PDF

Datasheet Details

Part number:

SY100E016

Manufacturer:

Micrel Semiconductor

File Size:

89.36 KB

Description:

8-bit synchronous binary up counter.
