SY100E212 Datasheet - Micrel Semiconductor

SY100E212 3-BIT SCANNABLE REGISTER

The SY10/100E212 are scannable registered ECL drivers typically used as fan-out memory address drivers for ECL cache driving. In a VLSI array-based CPU design, use of the E212 allows the user to conserve array output cell functionality and also output pins. The input shift register is designed with .

SY100E212 Features

* s Scannable version E112 driver s Extended 100E VEE range of

* 4.2V to

* 5.5V s 1025ps max. CLK to Output s Dual differential outputs s Master Reset s Internal 75KΩ input pull-down resistors s Fully compatible with industry standard 10KH, 100K ECL levels s Fully compatible with Motorol

SY100E212_MicrelSemiconductor.pdf

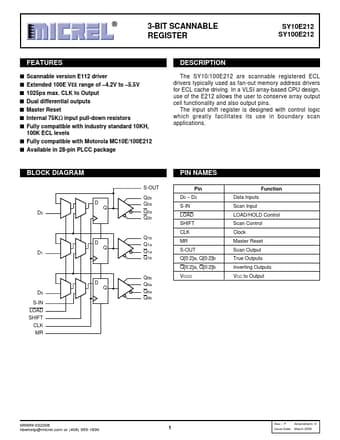

Preview of SY100E212 PDF
SY100E212 Datasheet Preview Page 2 SY100E212 Datasheet Preview Page 3

Datasheet Details

Part number:

SY100E212

Manufacturer:

Micrel Semiconductor

File Size:

59.31 KB

Description:

3-bit scannable register.
