SY100E241 Datasheet, Register, Micrel Semiconductor

✔ SY100E241 Features

s 1000ps max. CLK to output s Extended 100E VEE range of
4.2V to
5.5V s SHIFT overrides HOLD, /LOAD control s Asynchronous Master Reset s Pin-compatible with E141 s Ful

PDF File Details

Micrel Semiconductor manufacturer logo

Part number:

SY100E241

Manufacturer:

Micrel Semiconductor

File Size:

57.94kb

Download:

📄 Datasheet

Description:

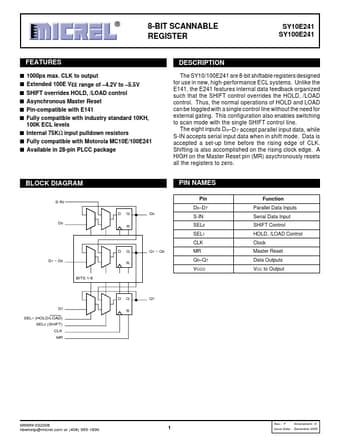

8-bit scannable register. The SY10/100E241 are 8-bit shiftable registers designed for use in new, high-performance ECL systems. Unlike the E141, the E241 featu
