SY100E256 Datasheet - Micrel Semiconductor

SY100E256 - 3-BIT 4:1 MUX-LATCH

The SY10/100E256 offer three 4:1 multiplexers followed by latches with differential outputs designed for use in new, high-performance ECL systems.

Separate Select controls are provided for the leading 2:1 mux pairs (see block diagram).

When the Latch Enable (LEN) is at a logic LOW, the latch is tran

SY100E256 Features

* s 950ps max. data to output s Extended 100E VEE range of

* 4.2V to

* 5.5V s 850ps max. latch enable to output s Separate select controls s Differential outputs s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s Fully compatible wi

SY100E256_MicrelSemiconductor.pdf

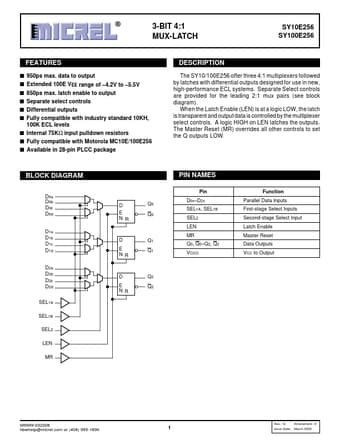

Preview of SY100E256 PDF
SY100E256 Datasheet Preview Page 2 SY100E256 Datasheet Preview Page 3

Datasheet Details

Part number:

SY100E256

Manufacturer:

Micrel Semiconductor

File Size:

58.59 KB

Description:

3-bit 4:1 mux-latch.
