SY100EL01 Datasheet, Or/nor, Micrel Semiconductor

SY100EL01 Features

  • Or/nor s 230ps propagation delay s High bandwidth output transitions s Internal 75KΩ input pull-down resistors s Available in 8-pin SOIC package 4-INPUT OR/NOR SY10EL01 SY1S0YE10L00E1L01 SY1

PDF File Details

Part number:

SY100EL01

Manufacturer:

Micrel Semiconductor

File Size:

44.72kb

Download:

📄 Datasheet

Description:

4-input or/nor. The SY10/100EL01 are 4-input OR/NOR gates. These devices are functionally equivalent to the E101 devices, with higher performance cap

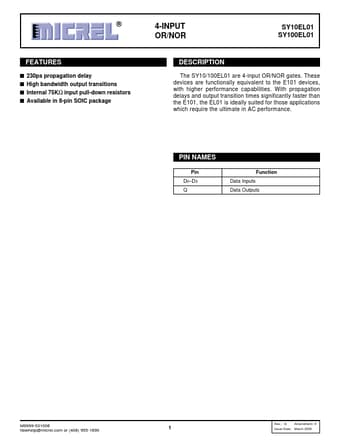

Datasheet Preview: SY100EL01 📥 Download PDF (44.72kb)
Page 2 of SY100EL01 Page 3 of SY100EL01

SY100EL01 Application

  • Applications which require the ultimate in AC performance. PIN NAMES Pin D0
      –D3 Q Function Data Inputs Data Outputs M9999-031006 h
