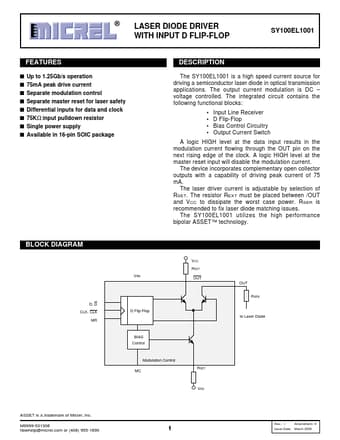

SY100EL1001
FEATURES s Up to 1.25Gb/s operation s 75m A peak drive current s Separate modulation control s Separate master reset for laser safety s Differential inputs for data and clock s 75KΩ input pulldown resistor s Single power supply s Available in 16-pin SOIC package
DESCRIPTION
The SY100EL1001 is a high speed current source for driving a semiconductor laser diode in optical transmission applications. The output current modulation is DC
- voltage controlled. The integrated circuit contains the following functional blocks:
- Input Line Receiver
- D Flip-Flop
- Bias Control Circuitry
- Output Current Switch
A logic HIGH level at the data input results in the modulation current flowing through the OUT pin on the next rising edge of the clock. A logic HIGH level at the master reset input will disable the modulation current.
The device incorporates plementary open collector outputs with a capability of driving peak current of 75 m A.
The laser driver current is adjustable by selection of RSET....
