SY100EL1003 - LASER DIODE DRIVER

SY100EL1003 Description

Micrel, Inc.LASER DIODE DRIVER WITH OUTPUT ENABLE SY100EL1003 SY100EL1003 .
The SY100EL1003 is a high speed current source for driving a semiconductor laser diode in optical transmission applications.

SY100EL1003 Applications

* The output current modulation is DC
* voltage controlled. The modulation current is disabled when output enable is HIGH. The device incorporates complementary open collector outputs with a capability of driving peak current of 75mA. The laser driver current is adjustable by selection of RSE

📥 Download Datasheet

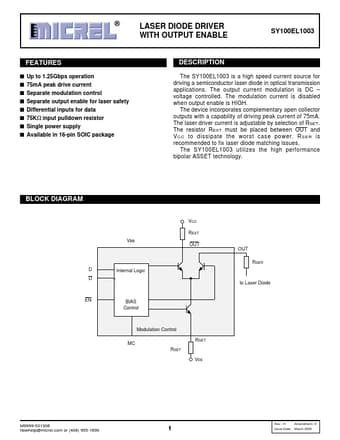

Preview of SY100EL1003 PDF
datasheet Preview Page 2 datasheet Preview Page 3
