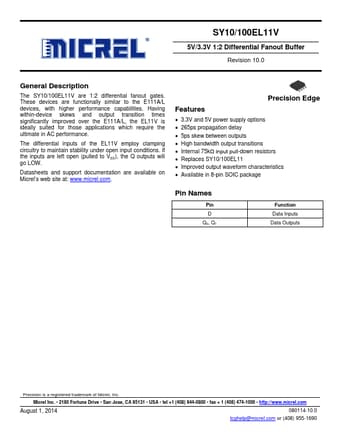

SY100EL11V Datasheet, Buffer, Micrel Semiconductor

SY100EL11V Features

• Buffer
• 3.3V and 5V power supply options
• 265ps propagation delay
• 5ps skew between outputs
• High bandwidth output transitions
• Internal 75kΩ input

PDF File Details

Part number:

SY100EL11V

Manufacturer:

Micrel Semiconductor

File Size:

250.77kb

Download:

📄 Datasheet

Description:

5v/3.3v 1:2 differential fanout buffer. The SY10/100EL11V are 1:2 differential fanout gates. These devices are functionally similar to the E111A/L devices, with higher perfo

SY100EL11V Application

• Applications which require the ultimate in AC performance. The differential inputs of the EL11V employ clamping circuitry to maintain stability unde
