SY100EL29V

5V/3.3V DUAL DIFFERENTIAL DATA AND CLOCK D FLIP-FLOP

SY100EL29V Features

* s 3.3V and 5V power supply option s Differential D, CLK and Q s Extended VEE range of

* 3.0V to

* 5.5V s VBB output for single-ended use s 1100MHz min. toggle frequency s Asynchronous Reset and Set s Fully compatible with Motorola MC100LVEL29 and MC100EL29 s Available in 20-pin SOIC pa

SY100EL29V General Description

The SY100EL29V is a dual differential register with differential data (inputs and outputs) and clock. The registers are triggered by a positive transition of the positive clock (CLK) input. A HIGH on the Reset (Rx) asynchronously resets the appropriate register so that the Q outputs go LOW. A HIGH o.

SY100EL29V Datasheet (54.03 KB)

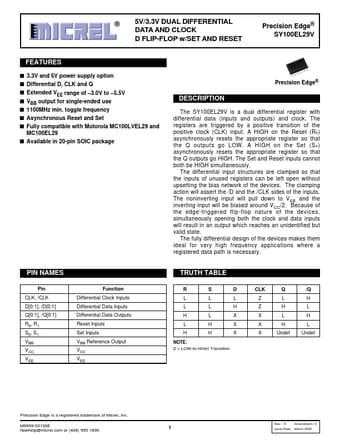

Preview of SY100EL29V PDF

Datasheet Details

Part number:

SY100EL29V

Manufacturer:

Micrel Semiconductor

File Size:

54.03 KB

Description:

5v/3.3v dual differential data and clock d flip-flop.
