SY100EP14U

2.5V/3.3V/5V 1:5 LVPECL/PECL/ ECL/HSTL 2GHz CLOCK DRIVER

SY100EP14U Features

* Guaranteed AC parameters over temp/voltage:

* > 2GHz fMAX

* < 25ps within-device skew

* < 275ps tr/tf time

* < 525ps prop delay

* 2:1 Differential MUX input

* Flexible supply voltage: 2.5V/3.3V/5V

* Wide operating temperature range:

SY100EP14U General Description

The SY100EP14U is a high-speed, 2GHz differential PECL/ECL 1:5 fanout buffer optimized for ultra-low skew applications. Within device skew is guaranteed to be less than 25ps over temperature and supply voltage. The wide supply voltage operation allows this fanout buffer to operate in 2.5V, 3.3.

SY100EP14U Datasheet (1.17 MB)

Preview of SY100EP14U PDF

Datasheet Details

Part number:

SY100EP14U

Manufacturer:

Micrel Semiconductor

File Size:

1.17 MB

Description:

2.5v/3.3v/5v 1:5 lvpecl/pecl/ ecl/hstl 2ghz clock driver.

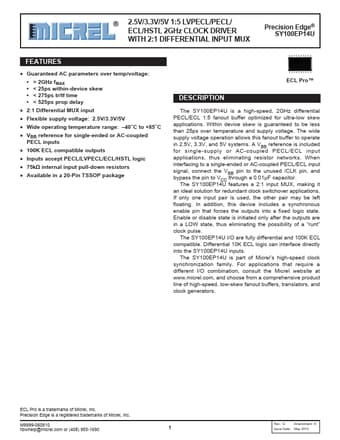

Micrel, Inc. 2.5V/3.3V/5V 1:5 LVPECL/PECL/ ECL/HSTL 2GHz CLOCK DRIVER WITH 2:1 DIFFERENTIAL INPUT MUX Precision Edge® PrecisioSnYE10d0gEeP1®4U SY100.
