SY100EPT20V Datasheet, Translator, Micrel Semiconductor

SY100EPT20V Features

  • Translator s 3.3V and 5V power supply options s 300ps typical propagation delay s Differential LVPECL output s ICC Max 20mA s PNP LVTTL input for minimal loading s Q output will default HIGH with

PDF File Details

Part number:

SY100EPT20V

Manufacturer:

Micrel Semiconductor

File Size:

67.22kb

Download:

📄 Datasheet

Description:

3.3v/5v lvttl/lvcmos-to-differential lvpecl translator. The SY10/100EPT20V is a TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used in

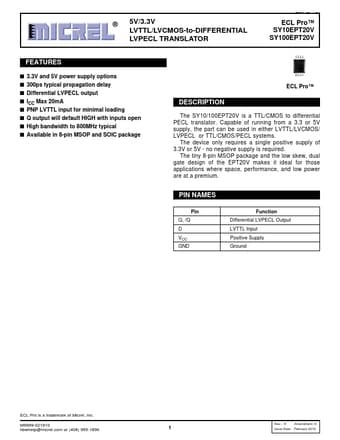

Datasheet Preview: SY100EPT20V 📥 Download PDF (67.22kb)
Page 2 of SY100EPT20V Page 3 of SY100EPT20V

SY100EPT20V Application

  • Applications where space, performance, and low power are at a premium. PIN NAMES Pin Q, /Q D VCC GND Function Differential LVPECL Output LVTTL Inp
