SY100EPT22V Datasheet, Translator, Micrel Semiconductor

SY100EPT22V Features

  • Translator s 3.3V and 5V power supply option s 300ps typical propagation delay s Differential LVPECL outputs s ICC Max 25mA s PNP LVTTL inputs for minimal loading s Flow-through pinouts s Q output

PDF File Details

Part number:

SY100EPT22V

Manufacturer:

Micrel Semiconductor

File Size:

68.92kb

Download:

📄 Datasheet

Description:

3.3v/5v dual lvttl/lvcmos-to- differential lvpecl translator. The SY100EPT22V is a dual TTL/CMOS to differential PECL translator. Capable of running from a 3.3 or 5V supply, the part can be used

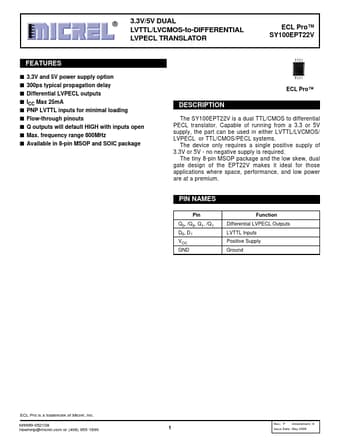

Datasheet Preview: SY100EPT22V 📥 Download PDF (68.92kb)
Page 2 of SY100EPT22V Page 3 of SY100EPT22V

SY100EPT22V Application

  • Applications where space, performance, and low power are at a premium. PIN NAMES Pin Q0, /Q0, Q1, /Q1 D0, D1 VCC GND Function Differential LVPECL
