SY10E111 Datasheet, Driver, Micrel Semiconductor

SY10E111 Features

• Driver s Low skew s Extended 100E VEE range of
    –4.2V to
    –5.5V s Guaranteed skew limits s Differential design s VBB output s Enable input s Fully compatible with

PDF File Details

Part number:

SY10E111

Manufacturer:

Micrel Semiconductor

File Size:

89.41kb

Download:

📄 Datasheet

Description:

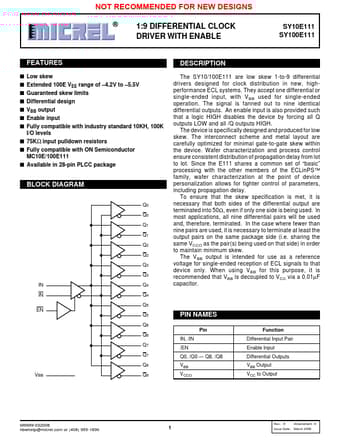

1:9 differential clock driver. The SY10/100E111 are low skew 1-to-9 differential drivers designed for clock distribution in new, highperformance ECL systems. They a

SY10E111 Application

• Applications all nine differential pairs will be used and, therefore, terminated. In the case where fewer than nine pairs are used, it is necessary
