SY10E112 Datasheet, Driver, Micrel Semiconductor

SY10E112 Features

  • Driver s 600ps max. propagation delay s Extended 100E VEE range of
      –4.2V to
      –5.5V s Common enable input s Fully compatible with industry standard 10KH, 100K I/O

PDF File Details

Part number:

SY10E112

Manufacturer:

Micrel Semiconductor

File Size:

85.14kb

Download:

📄 Datasheet

Description:

Quad driver. The SY10/100E112 are quad drivers designed for use in new, high-performance ECL systems. The E112 has two pairs of OR/NOR outputs fro

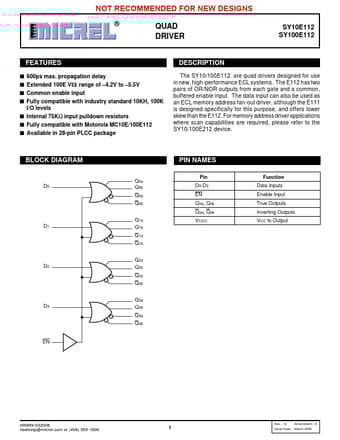

Datasheet Preview: SY10E112 📥 Download PDF (85.14kb)
Page 2 of SY10E112 Page 3 of SY10E112

SY10E112 Application

  • Applications where scan capabilities are required, please refer to the SY10/100E212 device. BLOCK DIAGRAM D0 D1 D2 D3 EN PIN NAMES Pin Q0a Q0b D0-
