SY10E116

QUINT DIFFERENTIAL LINE RECEIVER

SY10E116 Features

* s 450ps max. Propagation Delay s Extended 100E VEE range of

* 4.2V to

* 5.5V s VBB output for single-ended reception s Fully compatible with industry standard 10KH, 100K I/O levels s Internal 75KΩ input pulldown resistors s Fully compatible with Motorola MC10E/100E116 s Available in 28

SY10E116 General Description

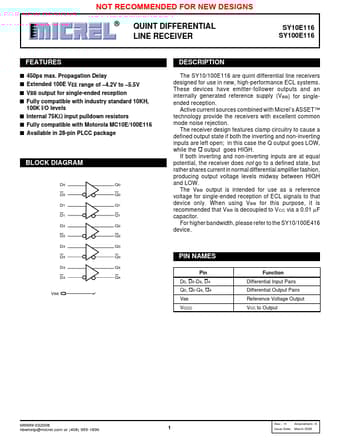

The SY10/100E116 are quint differential line receivers designed for use in new, high-performance ECL systems. These devices have emitter-follower outputs and an internally generated reference supply (VBB) for singleended reception. Active current sources combined with Micrel’s ASSET™ technology prov.

SY10E116 Datasheet (86.33 KB)

Preview of SY10E116 PDF

Datasheet Details

Part number:

SY10E116

Manufacturer:

Micrel Semiconductor

File Size:

86.33 KB

Description:

Quint differential line receiver.
