SY10E122

9-BIT BUFFER

SY10E122 Features

* s 500ps max. propagation delay s Extended 100E VEE range of

* 4.2V to

* 5.5V s Fully compatible with industry standard 10KH, 100K I/O levels s Internal 75KΩ input pulldown resistors s Fully compatible with Motorola MC10E/100E122 s Available in 28-pin PLCC package DESCRIPTION The SY10/

SY10E122 General Description

The SY10/100E122 are 9-bit buffers designed for use in new, high-performance ECL systems. The E122 provides nine non-inverting buffers. BLOCK DIAGRAM D0 D1 D2 D3 D4 D5 D6 D7 D8 Q0 Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 PIN NAMES Pin D0-D8 Q0-Q8 VCCO Function Data Inputs Data Outputs VCC to Output M9999-03200.

SY10E122 Datasheet (82.95 KB)

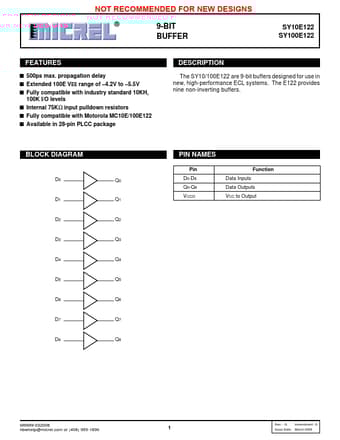

Preview of SY10E122 PDF

Datasheet Details

Part number:

SY10E122

Manufacturer:

Micrel Semiconductor

File Size:

82.95 KB

Description:

9-bit buffer.
