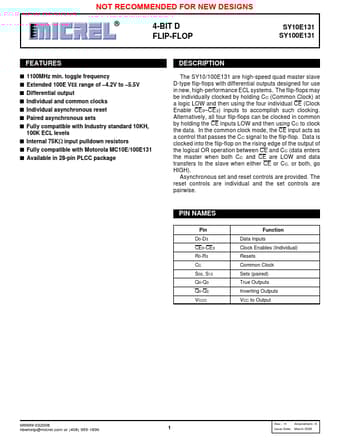

SY10E131, SY100E131 Datasheet - Micrel Semiconductor

SY10E131 - 4-BIT D FLIP-FLOP

The SY10/100E131 are high-speed quad master slave D-type flip-flops with differential outputs designed for use in new, high-performance ECL systems. The flip-flops may be individually clocked by holding CC (Common Clock) at a logic LOW and then using the four individual CE (Clock Enable CE0 *.

SY10E131 Features

* s 1100MHz min. toggle frequency s Extended 100E VEE range of

* 4.2V to

* 5.5V s Differential output s Individual and common clocks s Indivldual asynchronous reset s Paired asynchronous sets s Fully compatible with Industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown r
