SY10E143 Datasheet - Micrel Semiconductor

9-BIT HOLD REGISTER

SY10E143 Features

* s 700MHz min. operating frequency s Extended 100E VEE range of

* 4.2V to

* 5.5V s 9 bits wide for byte-parity applications s Asynchronous Master Reset s Dual clocks s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75kΩ input pulldown resistors s Fully compatib

SY10E143 General Description

The SY10/100E143 are high-speed 9-bit hold registers designed for use in new, high-performance ECL systems. The E143 can hold current data or load new data. The nine inputs, D0-D8, accept parallel input data. The SEL (Select) control pin serves to determine the mode of operation; either HOLD or LOAD.

SY10E143 Datasheet (85.58 KB)

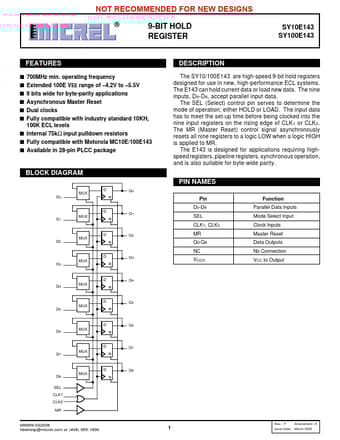

SY10E143 Datasheet Preview — Preview of SY10E143 PDF

Datasheet Details

Part number:

SY10E143

Manufacturer:

Micrel Semiconductor

File Size:

85.58 KB

Description:

9-bit hold register.
