SY10E151

6-BIT D REGISTER

SY10E151 Features

* s 1100MHz toggle frequency s Extended 100E VEE range of

* 4.2V to

* 5.46V s Differential outputs s Asynchronous Master Reset s Dual clocks s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s Fully compatible with Motorola MC10E/100

SY10E151 General Description

The SY10/100E151 offer 6 edge-triggered, high-speed, master-slave D-type flip-flops with differential outputs, designed for use in new, high-performance ECL systems. The two external clock signals (CLK1, CLK2) are gated through a logical OR operation before use as clocking control for the flip-flops.

SY10E151 Datasheet (86.01 KB)

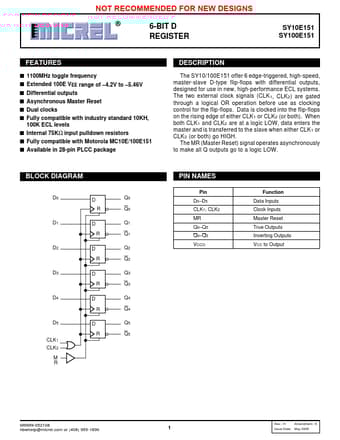

Preview of SY10E151 PDF

Datasheet Details

Part number:

SY10E151

Manufacturer:

Micrel Semiconductor

File Size:

86.01 KB

Description:

6-bit d register.
