SY10E158 - 5-BIT 2:1 MULTIPLEXER

This page provides the datasheet information for the SY10E158, a member of the SY100E158 5-BIT 2:1 MULTIPLEXER family.

Datasheet Summary

Description

The SY10/100E158 offer five 2:1 multiplexers with differential outputs, designed for use in new, highperformance ECL systems.

The multiplexer operation is controlled by the SEL (Select) signal which selects one of the two bits of input data at each mux to be passed through.

Features

  • s 550ps max. D to output s Extended 100E VEE range of.
  • 4.2V to.
  • 5.5V s 775ps max. SEL to output s Differential outputs s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s Fully compatible with Motorola MC10E/100E158 s Available in 28-pin PLCC package.

📥 Download Datasheet

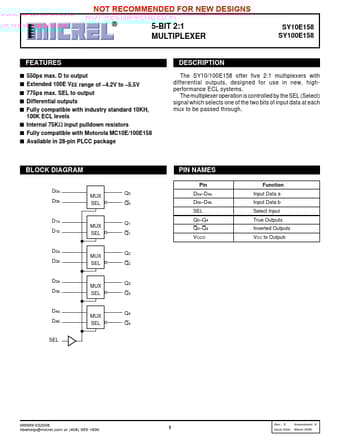

Datasheet preview – SY10E158

Datasheet Details

Part number SY10E158
Manufacturer Micrel Semiconductor
File Size 83.17 KB
Description 5-BIT 2:1 MULTIPLEXER
Datasheet download datasheet SY10E158 Datasheet
Additional preview pages of the SY10E158 datasheet.

📁 Similar Datasheet

  • SY10ELT23 - DUAL DIFFERENTIAL PECL-to-TTL TRANSLATOR (Synergy)
  • SY10 - SYNCHRONOUS EQUIPMENT STRATUM 3/3E CLOCK UNIT (Raltron Electronics)
  • SY100 - 3 Port Solenoid Valve Rubber Seal (SMC)
  • SY100EL11V - 5V/3.3V ECL 1:2 Differential Fanout Buffe (Microchip)
  • SY100EL16S - 5V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER (Synergy)
  • SY100EL16V - 5V/3.3V ECL Differential Receiver (Microchip)
  • SY100EL16VS - 3.3V/5V Variable Output Swing Differential Receiver (Microchip)
  • SY100EL29V - 5V/3.3V Dual Differential Data and Clock D Flip-Flop (Microchip)
  • SY100EL33L - 3.3V ECL/4 Divider (Microchip)
  • SY100EL52 - 5V ECL Differential Data and Clock D Flip-Flop (Microchip)
Other Datasheets by Micrel Semiconductor

Full PDF Text Transcription

Click to expand full text
Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS 5-BIT 2:1 MULTIPLEXER SY10E158 SY1S0YE10105E8158 SY100E158 FEATURES s 550ps max. D to output s Extended 100E VEE range of –4.2V to –5.5V s 775ps max. SEL to output s Differential outputs s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s Fully compatible with Motorola MC10E/100E158 s Available in 28-pin PLCC package DESCRIPTION The SY10/100E158 offer five 2:1 multiplexers with differential outputs, designed for use in new, highperformance ECL systems. The multiplexer operation is controlled by the SEL (Select) signal which selects one of the two bits of input data at each mux to be passed through.
