SY10E160 Datasheet - Micrel Semiconductor

12-BIT PARITY GENERATOR/CHECKER

SY10E160 Features

* s Provides odd-HIGH parity of 12 inputs s Extended 100E VEE range of

* 4.2V to

* 5.5V s s s s s s Output register with Shift/Hold capability 900ps max. D to Q, /Q output Enable control Asynchronous Register Reset Differential outputs Fully compatible with industry standard 10KH, 100K E

SY10E160 General Description

The SY10/100E160 are high-speed, 12-bit parity generator/checkers with differential outputs, for use in new, high-performance ECL systems. The output Q takes on a logic HIGH value only when an odd number of inputs are at a logic HIGH. A logic HIGH on the enable input (EN) forces the output Q to a lo.

SY10E160 Datasheet (60.26 KB)

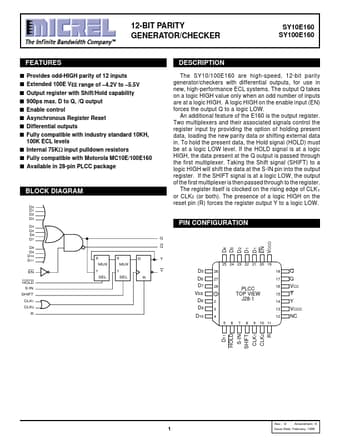

SY10E160 Datasheet Preview — Preview of SY10E160 PDF

Datasheet Details

Part number:

SY10E160

Manufacturer:

Micrel Semiconductor

File Size:

60.26 KB

Description:

12-bit parity generator/checker.
