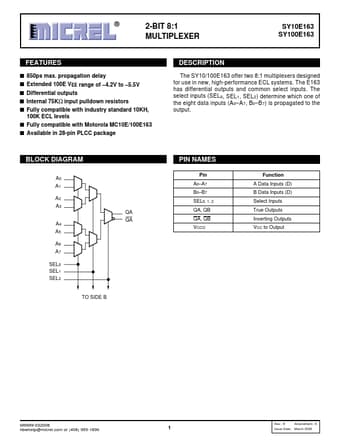

SY10E163
FEATURES s 850ps max. propagation delay s Extended 100E VEE range of
- 4.2V to
- 5.5V s Differential outputs s Internal 75KΩ input pulldown resistors s Fully patible with industry standard 10KH,
100K ECL levels s Fully patible with Motorola MC10E/100E163 s Available in 28-pin PLCC package
DESCRIPTION
The SY10/100E163 offer two 8:1 multiplexers designed for use in new, high-performance ECL systems. The E163 has differential outputs and mon select inputs. The select inputs (SEL0, SEL1, SEL2) determine which one of the eight data inputs (A0- A7, B0- B7) is propagated to the output.
BLOCK DIAGRAM
A0 A1 A2 A3
A4 A5 A6 A7
SEL0 SEL1 SEL2
TO SIDE B
QA QA
PIN NAMES
Pin A0- A7 B0- B7 SEL0, 1, 2 QA, QB QA, QB VCCO
Function A Data Inputs (D) B Data Inputs (D) Select Inputs True Outputs Inverting Outputs VCC to Output
M9999-032006 hbwhelp@micrel. or (408) 955-1690
Rev.: E
Amendment: /0
Issue Date: March 2006
Micrel, Inc.
SY10E163 SY100E163
PACKAGE/ORDERING INFORMATION
B1 B0 SEL0 VEE SEL1...
