SY10E164 Datasheet - Micrel Semiconductor

16:1 MULTIPLEXER

SY10E164 Features

* s 850ps Data Input to Output s Extended 100E VEE range of

* 4.2V to

* 5.5V s Differential output s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pull-down resistors s Fully compatible with Motorola MC10E/100E164 s Available in 28-pin PLCC package

SY10E164 General Description

The SY10/100E164 are 16:1 multiplexers with a differential output. The select inputs (SEL0,1,2,3) control which one of the sixteen data inputs (A0 *A15) is propagated to the output. Special attention to the design layout results in a typical skew between the 16 inputs of only 50ps. BLOCK DIA.

SY10E164 Datasheet (83.58 KB)

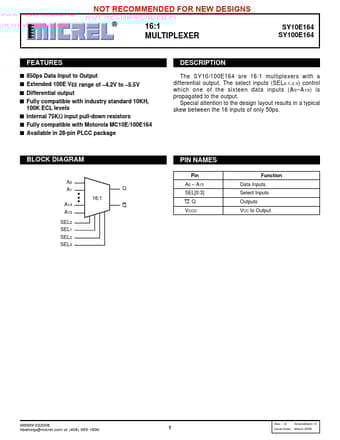

Preview of SY10E164 PDF

Datasheet Details

Part number:

SY10E164

Manufacturer:

Micrel Semiconductor

File Size:

83.58 KB

Description:

16:1 multiplexer.
