SY10E167 Datasheet - Micrel Semiconductor

6-BIT 2:1 MUX-REGISTER

SY10E167 Features

* s s s s s s s s s s s 1000MHz min. operating frequency Extended 100E VEE range of

* 4.2V to

* 5.5V 800ps max. clock to output Single-ended outputs Asynchronous Master Reset Dual clocks Fully compatible with industry standard 10KH, 100K ECL levels Internal 75KΩ input pulldown resistors

SY10E167 General Description

The SY10/100E167 offer six 2:1 multiplexers followed by D flip-flops with single-ended outputs, designed for use in new, high-performance ECL systems. The Select (SEL) control allows one of the two data inputs to the multiplexer to pass through. The two external clock signals (CLK1, CLK2) are gated .

SY10E167 Datasheet (155.24 KB)

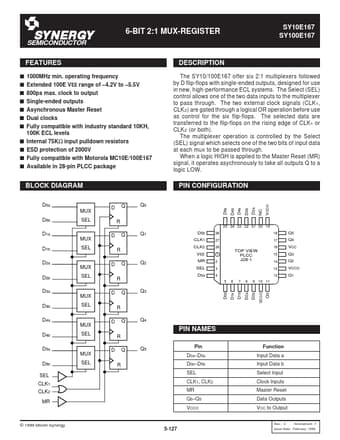

Preview of SY10E167 PDF

Datasheet Details

Part number:

SY10E167

Manufacturer:

Micrel Semiconductor

File Size:

155.24 KB

Description:

6-bit 2:1 mux-register.
