3-BIT 4:1 MULTIPLEXER

SY10E171 Features

* s 725ps max. D to output s Extended 100E VEE range of

* 4.2V to

* 5.5V s Differential outputs s Split select architecture s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s Fully compatible with Motorola MC10E/100E171 s Available

SY10E171 General Description

The SY10/100E171 offer three 4:1 multiplexers with differential outputs, designed for use in new, highperformance ECL systems. The leading 4-bit multiplexer operation is organized pairwise, with each pair being a 2bit multiplexer. Separate select (SEL1A, SEL1B) controls are provided within each pair.

SY10E171 Datasheet (57.38 KB)

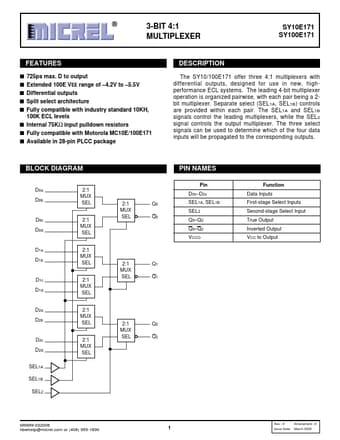

SY10E171 Datasheet Preview — Preview of SY10E171 PDF

Datasheet Details

Part number:

SY10E171

Manufacturer:

Micrel Semiconductor

File Size:

57.38 KB

Description:

3-bit 4:1 multiplexer.
