SY10E195 - PROGRAMMABLE DELAY CHIP

This page provides the datasheet information for the SY10E195, a member of the SY100E195 PROGRAMMABLE DELAY CHIP family.

Description

The SY10/100E195 are programmable delay chips (PDCs) designed primarily for clock de-skewing and timing adjustment.

They provide variable delay of a differential ECL input transition.

The delay section consists of a chain of gates organized as shown in the logic diagram.

Features

  • s Up to 2ns delay range s Extended 100E VEE range of.
  • 4.2V to.
  • 5.5V s ≈20ps/digital step resolution s >1GHz bandwidth s On-chip cascade circuitry s 75KkΩ input pulldown resistor s Fully compatible with Motorola MC10E/100E195 s Available in 28-pin PLCC package.

📥 Download Datasheet

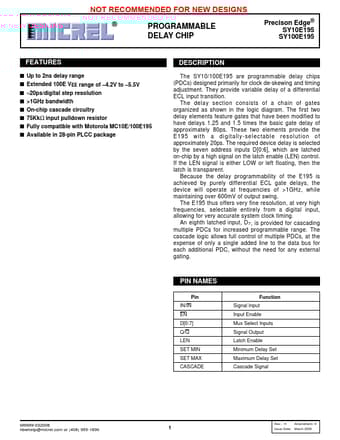

Datasheet preview – SY10E195

Datasheet Details

Part number SY10E195
Manufacturer Micrel Semiconductor
File Size 101.53 KB
Description PROGRAMMABLE DELAY CHIP
Datasheet download datasheet SY10E195 Datasheet
Additional preview pages of the SY10E195 datasheet.

📁 Similar Datasheet

  • SY10ELT23 - DUAL DIFFERENTIAL PECL-to-TTL TRANSLATOR (Synergy)
  • SY10 - SYNCHRONOUS EQUIPMENT STRATUM 3/3E CLOCK UNIT (Raltron Electronics)
  • SY100 - 3 Port Solenoid Valve Rubber Seal (SMC)
  • SY100EL11V - 5V/3.3V ECL 1:2 Differential Fanout Buffe (Microchip)
  • SY100EL16S - 5V VARIABLE OUTPUT SWING DIFFERENTIAL RECEIVER (Synergy)
  • SY100EL16V - 5V/3.3V ECL Differential Receiver (Microchip)
  • SY100EL16VS - 3.3V/5V Variable Output Swing Differential Receiver (Microchip)
  • SY100EL29V - 5V/3.3V Dual Differential Data and Clock D Flip-Flop (Microchip)
  • SY100EL33L - 3.3V ECL/4 Divider (Microchip)
  • SY100EL52 - 5V ECL Differential Data and Clock D Flip-Flop (Microchip)
Other Datasheets by Micrel Semiconductor

Full PDF Text Transcription

Click to expand full text
Micrel, Inc. NOT RECOMMENDED FOR NEW DESIGNS PROGRAMMABLE DELAY CHIP Precison Edge® Precison SESYdY1g1000eEE®119955 SY10E195 SY100E195 FEATURES s Up to 2ns delay range s Extended 100E VEE range of –4.2V to –5.5V s ≈20ps/digital step resolution s >1GHz bandwidth s On-chip cascade circuitry s 75KkΩ input pulldown resistor s Fully compatible with Motorola MC10E/100E195 s Available in 28-pin PLCC package DESCRIPTION The SY10/100E195 are programmable delay chips (PDCs) designed primarily for clock de-skewing and timing adjustment. They provide variable delay of a differential ECL input transition. The delay section consists of a chain of gates organized as shown in the logic diagram. The first two delay elements feature gates that have been modified to have delays 1.25 and 1.
