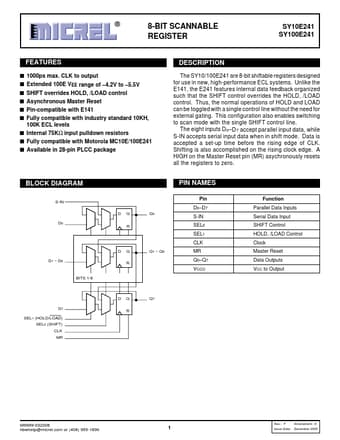

SY10E241
FEATURES s 1000ps max. CLK to output s Extended 100E VEE range of
- 4.2V to
- 5.5V s SHIFT overrides HOLD, /LOAD control s Asynchronous Master Reset s Pin-patible with E141 s Fully patible with industry standard 10KH,
100K ECL levels s Internal 75KΩ input pulldown resistors s Fully patible with Motorola MC10E/100E241 s Available in 28-pin PLCC package
DESCRIPTION
The SY10/100E241 are 8-bit shiftable registers designed for use in new, high-performance ECL systems. Unlike the E141, the E241 features internal data feedback organized such that the SHIFT control overrides the HOLD, /LOAD control. Thus, the normal operations of HOLD and LOAD can be toggled with a single control line without the need for external gating. This configuration also enables switching to scan mode with the single SHIFT control line.
The eight inputs D0- D7 accept parallel input data, while S-IN accepts serial input data when in shift mode. Data is accepted a set-up time before the rising edge of CLK. Shifting is...
