SY10E256

3-BIT 4:1 MUX-LATCH

SY10E256 Features

* s 950ps max. data to output s Extended 100E VEE range of

* 4.2V to

* 5.5V s 850ps max. latch enable to output s Separate select controls s Differential outputs s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s Fully compatible wi

SY10E256 General Description

The SY10/100E256 offer three 4:1 multiplexers followed by latches with differential outputs designed for use in new, high-performance ECL systems. Separate Select controls are provided for the leading 2:1 mux pairs (see block diagram). When the Latch Enable (LEN) is at a logic LOW, the latch is tran.

SY10E256 Datasheet (58.59 KB)

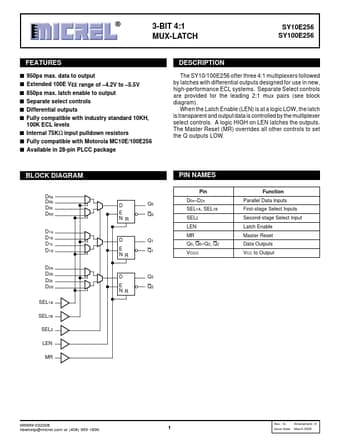

Preview of SY10E256 PDF

Datasheet Details

Part number:

SY10E256

Manufacturer:

Micrel Semiconductor

File Size:

58.59 KB

Description:

3-bit 4:1 mux-latch.
