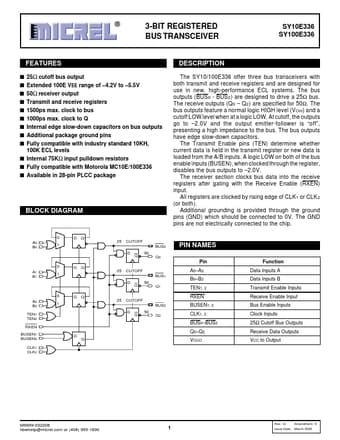

SY10E336
FEATURES s 25Ω cutoff bus output s Extended 100E VEE range of
- 4.2V to
- 5.5V s 50Ω receiver output s Transmit and receive registers s 1500ps max. clock to bus s 1000ps max. clock to Q s Internal edge slow-down capacitors on bus outputs s Additional package ground pins s Fully patible with industry standard 10KH,
100K ECL levels s Internal 75KΩ input pulldown resistors s Fully patible with Motorola MC10E/100E336 s Available in 28-pin PLCC package
BLOCK DIAGRAM
DESCRIPTION
The SY10/100E336 offer three bus transceivers with both transmit and receive registers and are designed for use in new, high-performance ECL systems. The bus outputs (BUS0
- BUS2) are designed to drive a 25Ω bus. The receive outputs (Q0
- Q2) are specified for 50Ω. The bus outputs feature a normal logic HIGH level (VOH) and a cutoff LOW level when at a logic LOW. At cutoff, the outputs go to
- 2.0V and the output emitter-follower is “off”, presenting a high impedance to the bus. The bus outputs have edge slow-down...
