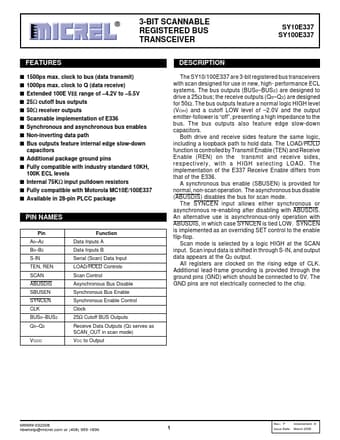

SY10E337
FEATURES s 1500ps max. clock to bus (data transmit) s 1000ps max. clock to Q (data receive) s Extended 100E VEE range of
- 4.2V to
- 5.5V s 25Ω cutoff bus outputs s 50Ω receiver outputs s Scannable implementation of E336 s Synchronous and asynchronous bus enables s Non-inverting data path s Bus outputs feature internal edge slow-down capacitors s Additional package ground pins s Fully patible with industry standard 10KH,
100K ECL levels s Internal 75KΩ input pulldown resistors s Fully patible with Motorola MC10E/100E337 s Available in 28-pin PLCC package
PIN NAMES
Pin A0- A2 B0- B2 S-IN TEN, REN SCAN ABUSDIS SBUSEN SYNCEN CLK BUS0- BUS2 Q0- Q2
VCCO
Function Data Inputs A Data Inputs B Serial (Scan) Data Input LOAD/HOLD Controls Scan Control Asynchronous Bus Disable Synchronous Bus Enable Synchronous Enable Control Clock 25Ω Cutoff BUS Outputs Receive Data Outputs (Q2 serves as SCAN_OUT in scan mode) VCC to Output
DESCRIPTION
The SY10/100E337 are 3-bit registered bus transceivers with...
