SY10E404, SY100E404 QUAD DIFFERENTIAL AND/NAND

SY10E404 Description

Micrel, Inc.QUAD DIFFERENTIAL AND/NAND SY10E404 SY1S0YE10400E4404 SY100E404 .
The SY10/100E404 are 4-bit differential AND/NAND devices.

SY10E404 Features

* s Differential D and Q s Extended 100E VEE range of
* 4.2V to
* 5.5V s 700ps max. propagation delay s High frequency outputs s Internal 75KΩ input pull-down resistors s Fully compatible with Motorola 10E/100E404 s Available in 28-pin PLCC package BLOCK DIAGRAM D0a D0a D0b D0b D1a D1a

SY10E404 Applications

* where duty cycle skew is critical. Special design techniques were incorporated to minimize the skew between the upper and lower level gate inputs. Because a negative 2-input NAND function is equivalent to a 2-input OR function, the differential inputs and outputs of the devices also allow for their

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SY10E404, SY100E404. Please refer to the document for exact specifications by model.

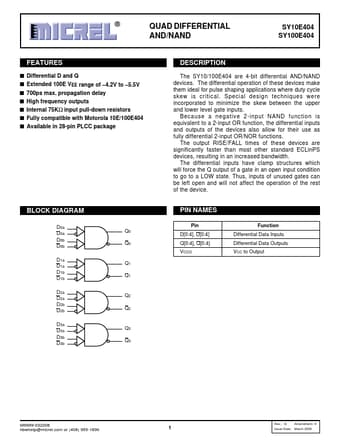

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SY10E404, SY100E404
Manufacturer
Micrel Semiconductor
File Size
58.36 KB
Datasheet
SY100E404_MicrelSemiconductor.pdf
Description
QUAD DIFFERENTIAL AND/NAND
Note
This datasheet PDF includes multiple part numbers: SY10E404, SY100E404.
Please refer to the document for exact specifications by model.
