SY10E431 3-BIT DIFFERENTIAL FLIP-FLOP

The SY10/100E431 are 3-bit flip-flops with differential clock, data input and data output. The asynchronous Set and Reset controls are edgetriggered rather than level controlled. This allows the user to rapidly set or reset the flip-flop and then continue clocking at the next clock edge without the .

SY10E431 Features

* s Differential D, clock and Q s Extended 100E VEE range of

* 4.2V to

* 5.5V s VBB output for single-ended use s 1100MHz min. toggle frequency s Edge-triggered asynchronous set and reset s Fully compatible with Motorola MC10E/100E431 s Available in 28-pin PLCC package BLOCK DIAGRAM S0

SY100E431_MicrelSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SY10E431, SY100E431. Please refer to the document for exact specifications by model.

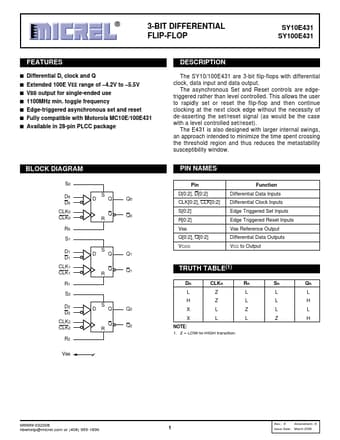

SY10E431 Datasheet Preview Page 2 SY10E431 Datasheet Preview Page 3

Datasheet Details

Part number:

SY10E431, SY100E431

Manufacturer:

Micrel Semiconductor

File Size:

58.35 KB

Description:

3-bit differential flip-flop.

Note:

This datasheet PDF includes multiple part numbers: SY10E431, SY100E431.
Please refer to the document for exact specifications by model.
