SY10E446, SY100E446 4-BIT PARALLEL-TO-SERIAL CONVERTER

SY10E446 Description

Micrel, Inc.4-BIT PARALLEL-TO-SERIAL CONVERTER SY10E446 SY1S0YE10404E6446 SY100E446 .
The SY10/100E446 are integrated 4-bit parallel-toserial data converters.

SY10E446 Features

* s On-chip clock ÷4 and ÷8 s Extended 100E VEE range of
* 4.2V to
* 5.5V s 1.6Gb/s typical data rate capability s Differential clock and serial inputs s VBB output for single-ended use s Asynchronous data synchronization s Mode select to expand to 8 bits s Internal 75KΩ input pulldown r

SY10E446 Applications

* The SYNC input will asynchronously reset the internal clock circuitry. This pin allows the user to reset the internal clock conversion unit and, thus, select the start of the conversion process. The MODE input is used to select the conversion mode of the device. With the MODE input LOW (or open) th

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SY10E446, SY100E446. Please refer to the document for exact specifications by model.

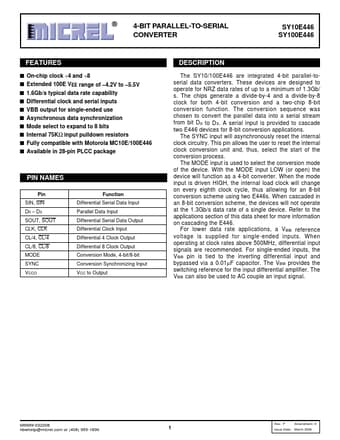

datasheet Preview Page 2 datasheet Preview Page 3
