SY10E451, SY100E451 Datasheet - Micrel Semiconductor

SY10E451 6-BIT REGISTER DIFFERENTIAL DATA CLOCK

The SY10/100E451 offer six D-type flip-flops with singleended outputs and differential data and clock inputs, designed for use in new, high-performance ECL systems. The registers are triggered by the rising edge of the CLK input. A logic HIGH on the Master Reset (MR) input resets all outputs to a lo.

SY10E451 Features

* s 1100MHz min. toggle frequency s Extended 100E VEE range of

* 4.2V to

* 5.5V s Differential inputs: data and clock s VBB output for single-ended use s Asynchronous Master Reset s Fully compatible with industry standard 10KH, 100K ECL levels s Internal 75KΩ input pulldown resistors s F

SY100E451_MicrelSemiconductor.pdf

This datasheet PDF includes multiple part numbers: SY10E451, SY100E451. Please refer to the document for exact specifications by model.

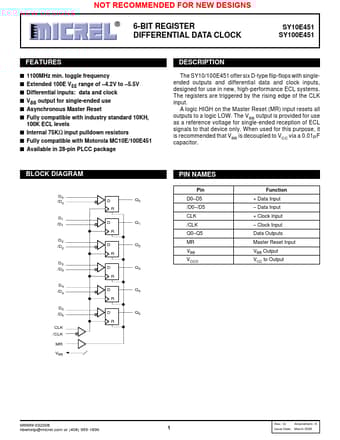

SY10E451 Datasheet Preview Page 2 SY10E451 Datasheet Preview Page 3

Datasheet Details

Part number:

SY10E451, SY100E451

Manufacturer:

Micrel Semiconductor

File Size:

86.10 KB

Description:

6-bit register differential data clock.

Note:

This datasheet PDF includes multiple part numbers: SY10E451, SY100E451.
Please refer to the document for exact specifications by model.
