SY10E457, SY100E457 TRIPLE DIFFERENTIAL 2:1 MULTIPLEXER

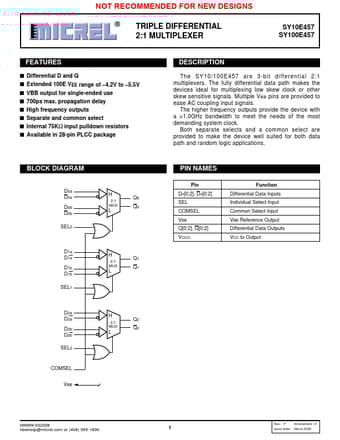

📥 Download Datasheet  Datasheet Preview Page 1

Description

Micrel, Inc.NOT RECOMMENDED FOR NEW DESIGNS TRIPLE DIFFERENTIAL 2:1 MULTIPLEXER SY10E457 SY1S0YE10405E7457 SY100E457 .
The SY10/100E457 are 3-bit differential 2:1 multiplexers.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SY10E457, SY100E457. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SY10E457, SY100E457
Manufacturer
Micrel Semiconductor
File Size
85.94 KB
Datasheet
SY100E457_MicrelSemiconductor.pdf
Description
TRIPLE DIFFERENTIAL 2:1 MULTIPLEXER
Note
This datasheet PDF includes multiple part numbers: SY10E457, SY100E457.
Please refer to the document for exact specifications by model.

Features

* s Differential D and Q s Extended 100E VEE range of
* 4.2V to

Applications

* BLOCK DIAGRAM D0a D0a D0b D0b SEL0 D1a D1a D1b D1b SEL1 H 2:1 MUX L Q0 Q0 H 2:1 MUX L Q1 Q1 PIN NAMES Pin Dn[0:2], Dn[0:2] SEL COMSEL VBB Q[0:2], Q[0:2] VCCO Function Differential Data Inputs Individual Select Input Common Select Input VBB Reference Output Differential Data Outputs VCC to O
