SY10EL05 Datasheet, And/nand, Micrel Semiconductor

SY10EL05 Features

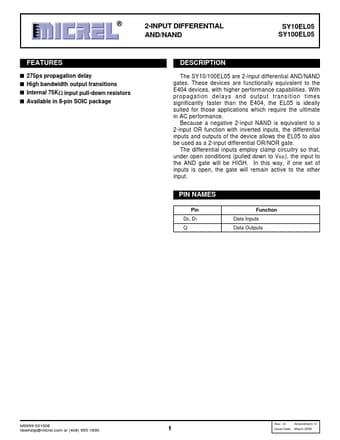

• And/nand s 275ps propagation delay s High bandwidth output transitions s Internal 75KΩ input pull-down resistors s Available in 8-pin SOIC package DESCRIPTION The SY10/100EL05 are 2-input diffe

PDF File Details

Part number:

SY10EL05

Manufacturer:

Micrel Semiconductor

File Size:

45.97kb

Download:

📄 Datasheet

Description:

2-input differential and/nand. The SY10/100EL05 are 2-input differential AND/NAND gates. These devices are functionally equivalent to the E404 devices, with higher

SY10EL05 Application

• Applications which require the ultimate in AC performance. Because a negative 2-input NAND is equivalent to a 2-input OR function with inverted inpu
