SY10EL07 Datasheet, Xor/xnor, Micrel Semiconductor

SY10EL07 Features

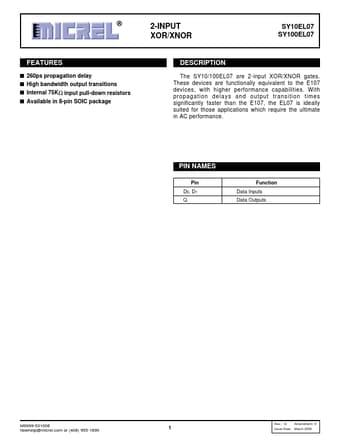

• Xor/xnor s 260ps propagation delay s High bandwidth output transitions s Internal 75KΩ input pull-down resistors s Available in 8-pin SOIC package DESCRIPTION The SY10/100EL07 are 2-input XOR/X

PDF File Details

Part number:

SY10EL07

Manufacturer:

Micrel Semiconductor

File Size:

44.65kb

Download:

📄 Datasheet

Description:

2-input xor/xnor. The SY10/100EL07 are 2-input XOR/XNOR gates. These devices are functionally equivalent to the E107 devices, with higher performance c

SY10EL07 Application

• Applications which require the ultimate in AC performance. PIN NAMES Pin D0, D1 Q Function Data Inputs Data Outputs M9999-031006 hbwhelp@micrel.c
