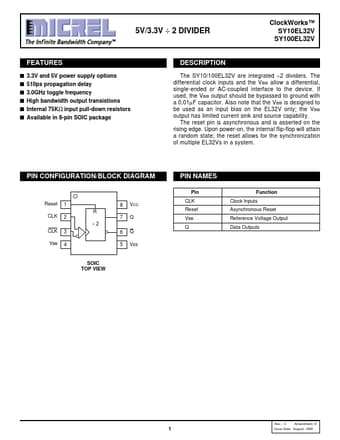

SY10EL32V
FEATURES s s s s s s 3.3V and 5V power supply options 510ps propagation delay 3.0GHz toggle frequency High bandwidth output transistions Internal 75KΩ input pull-down resistors Available in 8-pin SOIC package
DESCRIPTION
The SY10/100EL32V are integrated ÷ 2 dividers. The differential clock inputs and the VBB allow a differential, single-ended or AC-coupled interface to the device. If used, the VBB output should be bypassed to ground with a 0.01µF capacitor. Also note that the VBB is designed to be used as an input bias on the EL32V only; the VBB output has limited current sink and source capability. The reset pin is asynchronous and is asserted on the rising edge. Upon power-on, the internal flip-flop will attain a random state; the reset allows for the synchronization of multiple EL32Vs in a system.
PIN CONFIGURATION/BLOCK DIAGRAM
PIN NAMES
Pin Function Clock Inputs Asynchronous Reset Reference Voltage Output Data Outputs
Reset CLK CLK VBB
1 R 2 ÷2 3 4
8 7 6 5
VCC Q Q...
