SY10EL34L Datasheet, CHIP, Micrel Semiconductor

SY10EL34L Features

Chip Precision Edge®
3.3V and 5V power supply options
50ps output-to-output skew
Synchronous enable/disable
Master Reset for synchronization

PDF File Details

Part number:

SY10EL34L

Manufacturer:

Micrel Semiconductor

File Size:

193.99kb

Download:

📄 Datasheet

Description:

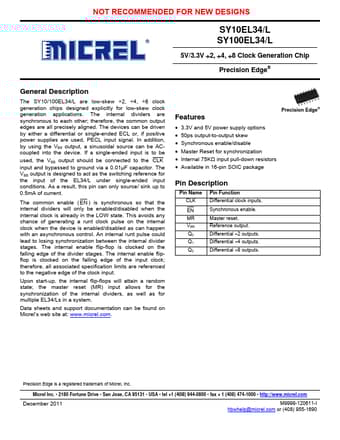

Clock generation chip. The SY10/100EL34/L are low-skew ÷2, ÷4, ÷8 clock generation chips designed explicitly for low-skew clock generation applications. The

📥 Download PDF (193.99kb)

SY10EL34L Application

Applications The internal dividers are synchronous to each other; therefore, the common output edges are all precisely aligned. The devices can be
